Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP

Çin Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP Tedarikçi
Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP Tedarikçi Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP Tedarikçi Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP Tedarikçi Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP Tedarikçi

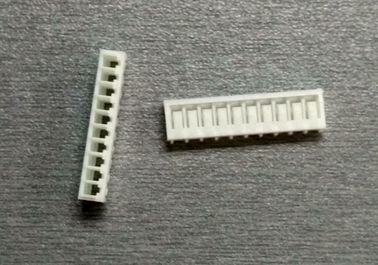

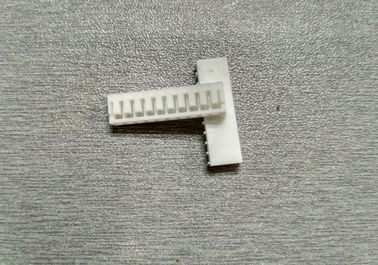

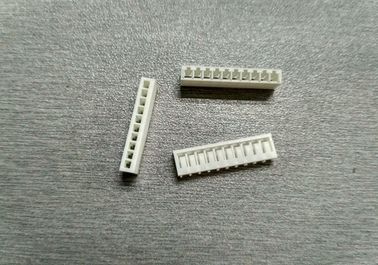

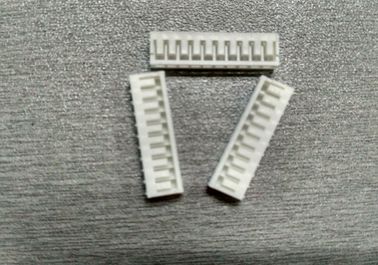

Büyük resim :  Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP

Ürün ayrıntıları:

Place of Origin: Dongguan, China(mainland)
Marka adı: HRT
Sertifika: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: B2011HV-NP

Ödeme & teslimat koşulları:

Minimum Order Quantity: 5000 pcs
Fiyat: USD0.001 to 0.5 per pcs
Packaging Details: Bag with outside carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28 million pcs per month
Detaylı ürün tanımı
Category: PCB board-in connectors Suitable terminals: B2011V series
PC board mounting direction: top entry Wire range: AWG24# to 30#
Flammability: UL94V-0 Row: single
Vurgulamak:

Circuit Board Connectors

,

Wire To Board Connector



2.00mm pitch board-in housing 180° top entrance board to board connectors B2011HV-NP



1, The specification of the product including basic size information, electrical and mechanical properties.



  Basic size information
Color white
Pitch 2.0mm
Contacts type vertical or right angle
Material PA66
Circuits 2 to 15pins
Wire insulation diameter  1.00mm Max.
Terminal material Brass
Finish terminal tin-plated

                                                          Electrical properties
Current Rating 2A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 1000mΩ min
Withstanding Voltage 800V AC/minute

                                                          Mechanical properties
Temperature range -25℃ to 85 ℃
                           Other information please kindly check the following picture.



2, The picture display of these series product



 The picture is preparing for you, pls kindly waiting.



3, Related drawing and report

Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.



Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NPSingle Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NPSingle Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NPSingle Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NPSingle Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP




4, Application fied of product

This product is very ideal for VCRs, car stereo system, audio parts and many other consumer oriented electronics product. It is with strong structure against external force. And it is wildly seted in most of household appliance, computer, communication device. We also can controll defective rate under a low value, so our prodcut are welcomed and trusted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.





5, Our comprehensive service

We can offer better service for you in order to have a long and two-win business relationship, also to build personal friendship.

   Single Row PCB Board Connectors 2.00mm Pitch PA66 10 Pin B2011HV-NP
