2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing

Çin 2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing Tedarikçi

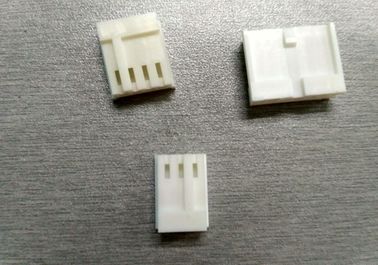

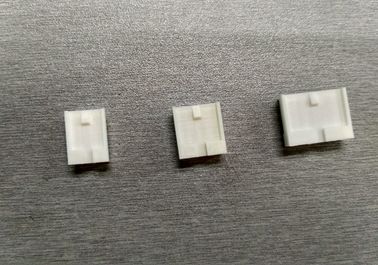

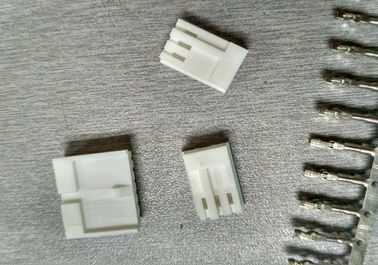

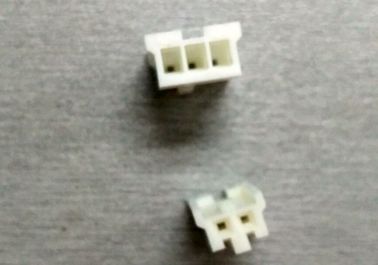

2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing Tedarikçi 2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing Tedarikçi 2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing Tedarikçi 2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing Tedarikçi

Büyük resim :  2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing

Ürün ayrıntıları:

Place of Origin: Dongguan, China(mainland)
Marka adı: HRT
Sertifika: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A2540H-NP

Ödeme & teslimat koşulları:

Minimum Order Quantity: 5000 pcs
Fiyat: USD0.001 to 0.5 per pcs
Packaging Details: bag with outside paper carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28 million pcs per month
Detaylı ürün tanımı
Color: White Pitch: 2.50mm
Materials: PA66, UL94V-0 Insulation O.D.: 1.70mm(max)
Packaging Type: Bag Application: Signal, Wire-to-Wire
Vurgulamak:

Printed Circuit Board Connectors

,

Circuit Board Connections

2.50mm pitch PA66 housing usb circuit board connector wire to board connector A2540HNP



1, Detailed specification of product



Wish the below table can help you to know our product clearly, then you will get the right

part from us.



Detailed information


Basic size information

Circuits From 2pins to 15pins
Mating lock Without
Wire range AWG22# to 28#
Terminal materials Brass
Finish terminal Tin-plated
Suitable Wafer A2540 series wafer
Matched Terminals A2540T series

Electrical properties Current Rating 3A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 500mΩ min
Withstanding Voltage 800V AC/minute

Mechanical properties Temperature range -25℃ to 85 ℃
  Other information please kindly check the following picture.





2,  Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to purchase it.



2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing






3, Why to choose us

  1. Strict quality control system

  2. Prompt delivery

  3. Small order acceptable and flexible MOQ

  4. Perfect craft procedure

  5. OEM or ODM project welcomed





4, Application field of this product

This part is ideal for most of household appliance, computer, telecommunication tools. Our products are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc because of its' low defective rate, it have a good performance in real application. All products are certificated by REACH, UL, RoHS, in order to protect the evironment, some parts are halogen free.

2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing

5, Our service

We offer multiple payment and delivery terms to save your time & money. It's no doubt that your hurry demands can be met by us. Besides, because we sign agreement with the international express company, the shipping time and price will be attractive to you, so contact us now!

2.50mm Pitch Circuit Board Wire Connectors A2540HNP PA66 Housing
