| Place of Origin: | China |
| Marka adı: | HRT |
| Sertifika: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A1016 |
| Minimum Order Quantity: | 20 KPCS |
|---|---|
| Fiyat: | Negotiated |
| Packaging Details: | paper tray with out carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 1000 pcs per day |
| Part NO.: | A1016-TPE A1016-GPE Terminal | Pitch: | 1.00mm |
|---|---|---|---|
| Wire range: | AWG#30-#32 | Material: | Phosphor bronze |
| Finish: | Tin-plated or Gold- flash | Fire-protection rating: | UL 94V-0 |
| Insulation: | 0.8mm(Max) | ||
| Vurgulamak: | Crimp Terminal Connector,Crimp Wire Connectors |
||

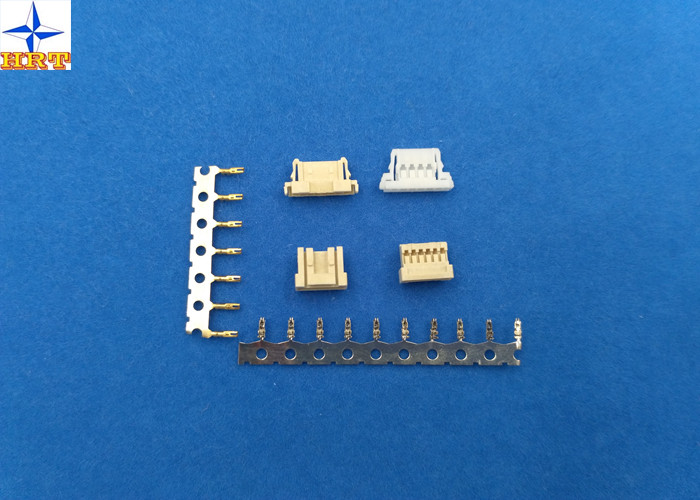

Wire to board Connectors pitch 1.00mm Phosphor bronze TIn-plated or Gold-finish
Description:
1. A1016 series Terminals are stamped by Phosphor Bronze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A1016-TPe, Gold-plated we calling A1016-GPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.
2. Terminals' wire range :AWG #30--#32,insulation OD is0.8mm(Max).
3. A1016 series Terminal used in A1016 series Housing
Actuator Insertion/Withdrawal Force
| Test Description | Procedure | Requirement |
|
Contact Resistance |
Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 20mΩ (Max.) |
| Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
| Dielectric Withstanding Voltage | Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) | No Breakdown. |
| Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. | 5mΩ (Max.) |
Electrical:
| Current rated | 1A AC/DC maximum |
| Voltage rated | 60V AC/DC |
| Withstand voltage | 600V AC/minute |
| Insulation resistance | 100MΩ min |
| Contact resistance | 20MΩ max |
| Operating temperature | -25 - 85°C |
Quality:
The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
Drawing :
Service:
Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .
HRT Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
3. time.
4. Free Samples:10~20 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair
8. kits if customers are not satisfied)
